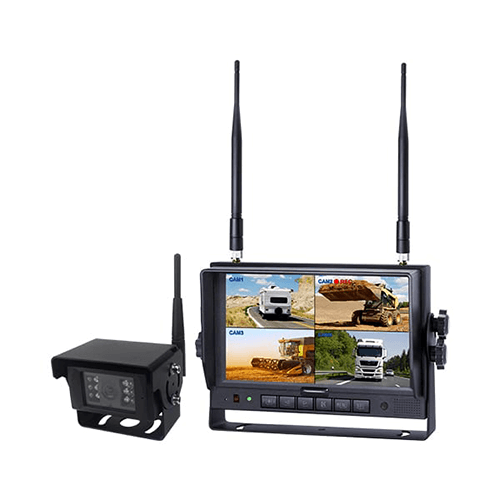

Axis JS007WQK 7″ Heavy Duty Wireless Reversing System


This product is discontinued. Click here to purchase the new model.

7″ Heavy Duty Wireless Reversing System – Quad Recording and Waterproof CCD Camera

This product has been discontinued.

MONITOR
– LCD Size: 178mm (7”)
– Resolution: 800 x 3 (RGB) x 480
– Contrast: 500:1
– Brightness: 400 cd/m²
– Viewing Angle: U: 50 / D: 70, R/L: 70
– Dot Pitch: 0.0642(W) x 0.1790(H)
– Aspect Ratio: 16:9
– Image Orientation: Normal / Mirror / Flip / Mirror Flip
– Inputs: 4 Channels
– Operating Frequency: 2.4 ~ 2.4835 GHz
– Receiving Sensitivity: -89 dBm
– Pairing to Camera/s: Auto when camera activated
– Compression Format: MPEG4
– Transmit Output Power: 17 dBm
– Modulation: 2.4G FSK/GFSK
– Time Delay: 120ms
– Transmitting Range: 120 Metres (approx)
– Recording Media: Micro-SD / TF Card (not supplied)
– Max SD Card Capacity: 128GB
– Cycled Recording: 1 ~ 4 channels
– Signal System: PAL / NTSC
– Power Supply: DC 10-32V
– Power Consumption: 6W Max
– On-board Loudspeaker: 1.5W ƺ
– Operating Temperature: -20~+70°C

CAMERA
– Image Device: 1/3” CCD PC1089 Sensor
– Viewing Angle: 120°
– Signal System: PAL
– Effective Pixels: 728 x 488
– Sensing Area: 4.6228mm x 3.6112mm
– Scanning System: 2:1 Interlace
– Sync System: Internal
– Horizontal Sync Frequency: 15.625 KHz
– Vertical Sync Frequency: 50 Hz
– S/N Radio: Better than 48dB
– White Balance: Auto
– Electronic Shutter: 1/50 (PAL) ~1/100,000 seconds
– Operating Frequency: 2.4 ~ 2.4835 GHz
– Receiving Sensitivity: -89 dBm
– Line of Sight Range: 120 metres
– Compression Format: MPEG4
– Frame Rate: 25f/s
– Transmit Output Power: 17 dBm
– RF Bit Rate: 4Mbps
– Minimum Illumination: 0 Lux (12 IR LEDs)
– Night Vision Distance: 10m
– Audio: Yes
– Ingress Protection: IP69
– Power Supply: DC 8-36V

INCLUDED
Mounting Brackets:
– Dash Mount
– U-Shape Mount

Accessories:
– Sunshade
– Remote Control
– 3dB Patch Antenna for enhanced Range
